Custom Stainless Steel 350L Capacity Semi-Automatic Horizontal Ribbon Powder Mixer for PVC

Custom Stainless Steel 350L Capacity Semi-Automatic Horizontal Ribbon Powder Mixer for PVC

브랜드 이름: WeSeW
모델 번호: 카이003
MOQ: 1개
가격: US$15,000~US$30,000 per pc
지불 조건: T/T, 서부 동맹
공급 능력: 달 당 10,000 조각
상세 정보
원래 장소:
중국
인증:
CE/UL
모델 번호.:
카이003
상태:
새로운
제어 시스템:
버튼 제어
냉각 방식:
공기 냉각
가열방식:
전기난방
주요재료:
합금 강철, 탄소강, 스테인레스 스틸
믹싱 용량:
500-1000L
안전 기능:
미끄럼 방지 발, 비상 정지 버튼, 과부하 보호, 안전 잠금 장치, 방수막
속도 제어:
가변 속도
속도 범위:
30-39 회전/분
교반형:
나선
온도 조절:
난방으로
일하고 있는:
하이 스피드 믹서
가공된 재료:
플라스틱, 화학, 식량, 의약품
주요 판매 포인트:
작동하기 쉬움
기계 시험 보고서:
제공
적용범위:
식품 약국 화학
핵심 구성요소:
모터, 기어 박스
색상:
클라이언트 요청
운송 패키지:
나무 상자
사양:
맞춤형
등록 상표:
웨세우
기원:
중국
공급 능력:
500000/년
패키지 크기:
150.00cm * 50.00cm * 50.00cm
패키지 총중량:
80.000 킬로그램
애프터 서비스:
해외 기계 서비스에 사용할 수 있는 엔지니어
애플리케이션:
과립, 액체, 부유 고형물 함유 액체, 분말, 점성 유체
적용분야:
농업 화학, 화학, 일일 화학, 엔지니어링 및 건설, 식품, 야금 및 미네랄, 제약
맞춤화:
맞춤형 요청 가능
배송비:
배송비 및 예상 배송 시간에 대해
통화:
미국 달러
반품 및 환불:
제품 수령 후 최대 30일까지 환불을 신청하실 수 있습니다.
포장 세부 사항:
나무 케이스
공급 능력:
달 당 10,000 조각
제품 설명
Custom-made Industrial Stainless Steel Semi-Automatic 350-Liter Horizontal Belt-Type PVC Powder Mixer
This industrial-grade ribbon mixer features a 350-liter capacity with a single-batch output of 300 kg. Powered by a 5.5 kW motor and constructed from durable stainless steel, it is designed for efficient mixing of plastic powders including EVA, PE, PP, PVC, PU, TPR, ABS, and PBS materials.
Product Specifications
Product Type: Ribbon Mixer
Voltage: 380V/415V/440V
Configuration: Horizontal
Automatic Grade: Semi-Automatic
Material: Stainless Steel
Core Components: Motor
Capacity: 350L
Output: 300 kg/time
Weight: 700 kg
Dimensions: 2100×920×1650 mm
Power: 5.5 kW
Usage: Plastic Powder
Technical Specifications - Horizontal Plastic Blender Series
Specification 125L 350L 500L 1000L 1500L
Heating Power 6 kW 8 kW 10 kW 15 kW 18 kW
Motor Power 4 kW 5.5 kW 7.5 kW 11 kW 15 kW
Main Spiral Rotate Speed 22 r/min 14 r/min 12 r/min 11 r/min 10 r/min
Capacity 125 L 350 L 500 L 1000 L 1500 L
Output (Kg/time) 100 350 500 1000 1500
Mixing Time (Min/time) 35-45 35-45 40-50 40-50 40-50
Overall Dimensions (mm) 2300×900×1300 2100×920×1650 2450×1000×2100 2820×1305×2355 3315×1500×2525
Weight 750 Kg 1000 Kg 1400 Kg 2000 Kg 2500 Kg
Product Images

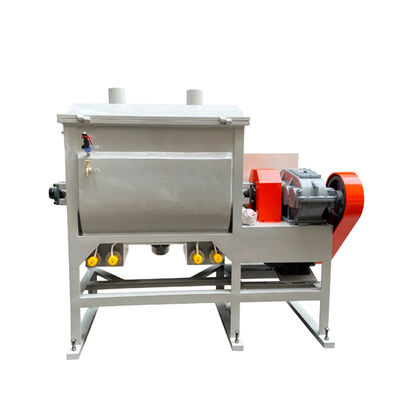

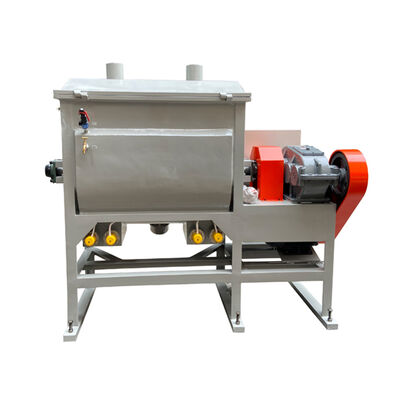

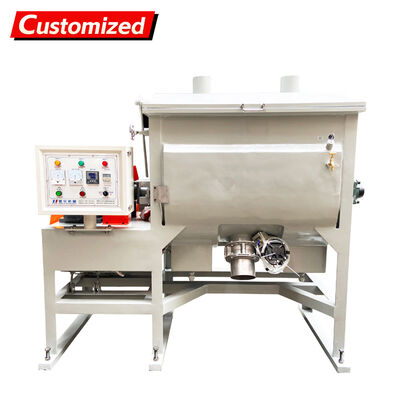

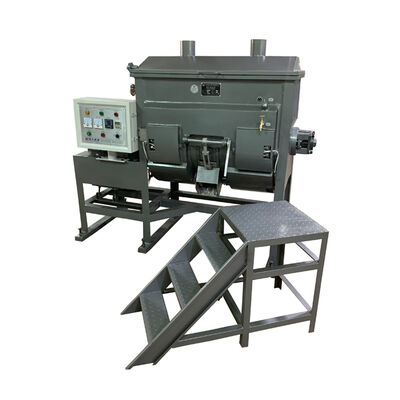

Industrial stainless steel horizontal ribbon mixer - front view Industrial stainless steel horizontal ribbon mixer - side view Industrial stainless steel horizontal ribbon mixer - operational view Industrial stainless steel horizontal ribbon mixer - detailed component view
