OEM Customized Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling with Keyway Tapered Structure and 2000n-m Rated Torque

브랜드 이름:	WeSeW
모델 번호:	CNC0184
MOQ:	1개
가격:	US$5~US$50 per pc
지불 조건:	T/T, 서부 동맹
공급 능력:	달 당 10,000 조각

상세 정보

제품 설명

상세 정보

원래 장소:

중국

인증:

CE, ISO9001/UL

이름:

스플라인 샤프트 커플링

OEM/ODM:

OEM ODM CNC 밀링 터닝 가공 서비스

재료 능력:

알루미늄, 놋쇠, 브론즈, 구리, 굳어진 금속

애플리케이션:

금속 절단 기계, 금속 직선화 기계, 금속 회전 기계, 금속 가공 기계 부품, 금속 단조 기계, 금속 조각 기계, 금속 드로잉 기계, 금속 코팅 기계, 금속 주조 기계

기준:

DIN, ASTM, GOST, GB, JIS, ANSI, BS

CNC 가공 여부:

CNC 가공

마이크로 가공 여부:

마이크로 가공

가공방법:

고객의 엔지니어링 도면

포장 세부 사항:

나무 케이스

공급 능력:

달 당 10,000 조각

강조하다:

Five-Point Design Spline Shaft Coupling

Keyway Tapered Structure Flexible Coupling

2000n-m Rated Torque Rectangular Spline Coupling

제품 설명

OEM Customized Machine Learning Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling

High-precision flexible steel rectangular spline shaft coupling with keyway tapered structure, designed for demanding industrial applications requiring reliable torque transmission and precise alignment.

Technical Specifications

Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Construction Works, Energy & Mining, Other
Material	Steel
Standard or Nonstandard	Standard
Structure	Universal
Warranty	1 year
Bore Diameter	100mm
Maximum Speed	5,000 RPM
Rated Torque	2000 N·m
Type	Flexible
Outer Diameter	145mm
Bore Diameter Range	24mm ~ 65mm
Length Range	163mm - 323mm
Bore Type	Finished Bore
Surface Treatment	Blackening
Minimum Order Quantity	1 Set

Key Features & Benefits

High Load Capacity: Multi-tooth structure design with large total contact area and uniform force distribution for substantial torque transmission in heavy-duty applications
Excellent Alignment and Guidance: Numerous evenly distributed teeth ensure high alignment precision between shaft and hub, ideal for high-speed operation and precision transmission systems
High Structural Strength: Shallow keyways minimize stress concentration at tooth roots, effectively reducing strength degradation in shafts and hubs
Wide Application Range: Commonly used in automotive transmissions, machine tool spindles, hydraulic equipment, and other applications demanding high centering accuracy and reliability
Diverse Compatibility: Available in rectangular splines (small-diameter centering, easy machining) and involute splines (self-centering, higher strength)

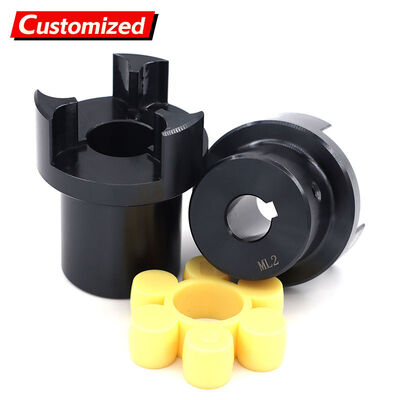

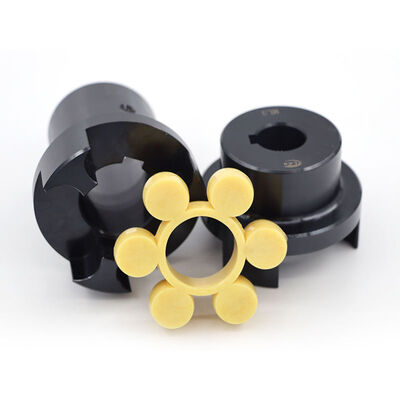

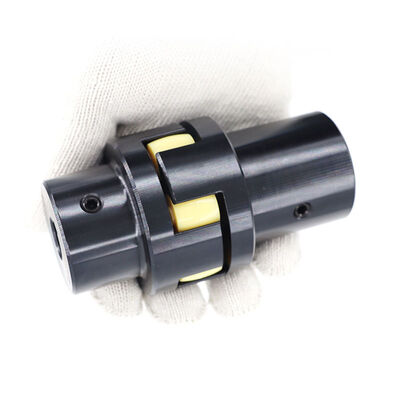

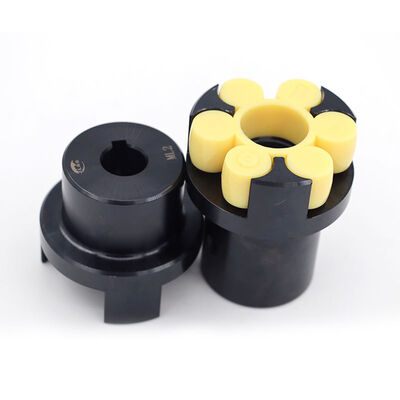

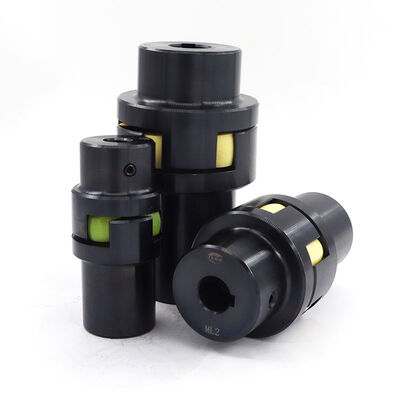

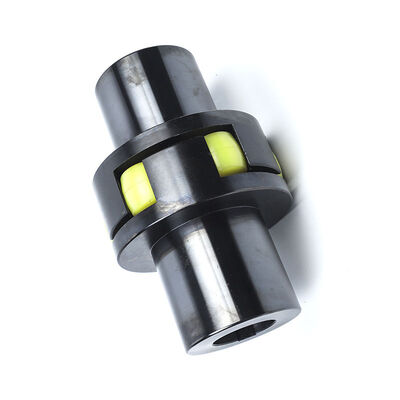

Product Images
