Custom Screw Conveyor U-Shaped Twin-Screw Mixer with Rotating Blades for Food, Chemical, Pharmaceutical, and Construction Materials Industries

브랜드 이름:	WESEW
모델 번호:	중국
MOQ:	1 PC
가격:	US$5500~US$70,000 per pc
지불 조건:	T/T, 서부 동맹
공급 능력:	한 달에 10000 세트

상세 정보

제품 설명

상세 정보

원래 장소:

중국

인증:

ce/ul

재료:

스테인레스 스틸/커스텀

재료 기능:

내방성, 내화성

애플리케이션:

화학 산업, 곡물 운송, 광업 운송, 발전소

핵심 구성요소:

모터

차원 (L*W*H):

맞춤형

사양:

맞춤형

맞춤화:

맞춤형 요청 가능

포장 세부 사항:

나무 케이스

공급 능력:

한 달에 10000 세트

강조하다:

U-shaped twin-screw mixer for food industry

Custom screw conveyor with rotating blades

Powder mixing machine for pharmaceutical materials

제품 설명

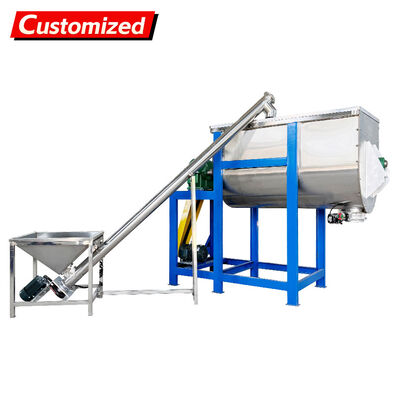

Custom Screw Conveyor U-Shaped Twin-Screw Mixer with Rotating Blades

This advanced powder mixing equipment integrates a screw conveyor with a U-shaped twin-screw mixer to create an efficient material handling system. The screw conveyor utilizes rotating spiral blades to transport powdered and granular materials from lower to higher elevations, while the U-shaped twin-screw mixer employs a dual-screw configuration for comprehensive three-dimensional tumbling and mixing, ensuring uniform blending of multi-component substances to meet stringent process requirements across various industries.

Key Functions

Material Conveyance: Screw conveyor elevates powdered or granular materials from lower levels to the U-shaped mixer through rotating spiral blades, enabling precise directional material transfer
Mixing and Blending: U-shaped mixer thoroughly mixes and blends conveyed materials, ensuring uniform incorporation of different components to meet specific production process requirements for material homogeneity

Application Areas

Food Industry: Mixing powdered or granular food ingredients including milk powder, seasonings, and flour to ensure uniform product composition and enhanced quality
Chemical Industry: Blending various chemical raw materials such as coatings, pigments, and plastic pellets to guarantee stable performance of chemical products
Pharmaceutical Industry: Blending drug powders and excipients during drug formulation production, ensuring uniform drug composition and compliance with pharmaceutical quality standards
Building Materials Industry: Manufacturing dry-mix mortar, putty powder, and other building materials by uniformly blending cement, sand, additives, and other components to enhance material performance

Technical Specifications

Model	HCJX-200	HCJX-300	HCJX-500	HCJX-1000	HCJX-2000
Available Volume (L)	430	580	880	1600	2700
Operating Voltage (V)	220/380	220/380	380	380	380
Motor Power (KW)	3	3	5.5	7.5	11.5
Spindle Speed (rpm)	25	25	25	23	22
Cylinder Wall Thickness (mm)	2	2	2	2.5	3
Single Mixing Time (min)	3-6	4-6	6-9	8-12	10-15
Discharge Port Diameter (mm)	133	159	159	219	219
Cylinder Dimensions (mm)	1150660710	1320760810	1250850900	189010501100	220012501300
Overall Dimensions (mm)	20167421249	22988461424	25639581624	350011581950	380014002350
