체인 스크레이퍼 컨베이어
Created with Pixso.

Custom-made high-quality chain scraper conveyors and inclined drag chain scraper conveyors, suitable for transporting coal/ash/biomass, with specialized chain conveyors for wood chips.

Custom-made high-quality chain scraper conveyors and inclined drag chain scraper conveyors, suitable for transporting coal/ash/biomass, with specialized chain conveyors for wood chips.

브랜드 이름: WESEW
모델 번호: W003
MOQ: 1개
가격: US$75000~US$20,000/set
지불 조건: T/T, 서부 동맹
공급 능력: 달 당 100 세트
상세 정보
원래 장소:
중국
인증:
ce
재료:
스테인레스 강 / 탄소강
재료 기능:
내방성, 내화성
애플리케이션:
화학 산업, 곡물 운송, 광업 운송, 발전소
적용산업:
제조 공장, 에너지 및 광업
핵심 구성요소:
모터, 엔진
차원 (L*W*H):
맞춤형
사양:
맞춤형
구조:
체인 스크레이퍼 컨베이어
포장 세부 사항:
나무 케이스
공급 능력:
달 당 100 세트
강조하다:

custom chain scraper conveyor for coal

,

inclined drag chain scraper conveyor

,

wood chip chain scraper conveyor

제품 설명
Custom Chain Scraper Conveyors
High-quality custom-made chain scraper conveyors and inclined drag chain scraper conveyors designed for efficient transportation of coal, ash, biomass, and specialized handling of wood chips.
Product Overview
The Horizontal Drag Chain Scraper Conveyor Plate is fully sealed conveying equipment engineered for transporting powder and small granular materials including cement powder, coal, chemical fertilizer, grain, and calcium carbonate. This conveyor system handles bulk material transportation both horizontally and on inclined surfaces.
Technical Specifications
MaterialStainless Steel / Carbon Steel
PowerAs Required
Width/Diameter150-800mm
Applicable IndustriesManufacturing Plant, Farms, Construction Works, Energy & Mining
Dimensions (L*W*H)As Required
Voltage220V/380V/415V
Warranty2 Years
Speed10-25m/s
ModelFU 350
Moisture Ratio≤5%
Maximum Slant Angle≤15°
Shell Width350mm
Key Features & Benefits
  • Large Throughput: Capacity ranging from 6m³/h to 500m³/h
  • Low Energy Consumption: Utilizes material friction for propulsion, saving 40-50% power compared to screw conveyors
  • Excellent Sealing & Safety: Minimizes material overflow and spillage
  • Extended Service Life: Heat-treated chains with quenching process ensure durability exceeding five years
  • Flexible Process Arrangement: Multiple feed and discharge points for versatile material handling

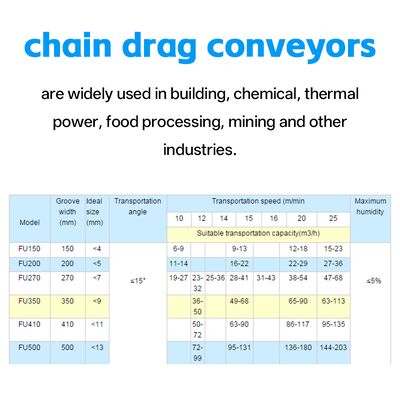

  • Complete Series: Available in FU150, FU200, FU270, FU350, FU410, FU500 models (numbers indicate groove width)
Applications
FU type chain drag conveyors are extensively used across multiple industries including building construction, chemical processing, thermal power generation, food processing, and mining operations.
