| 브랜드 이름: | WeSeW |
| 모델 번호: | 카이001 |
| MOQ: | 1개 |
| 가격: | US$10,000~US$20,000 per pc |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 한 달에 10000 세트 |
Automatic tubular winch integrated sludge conveying and filter pressing equipment designed for transporting sludge, powder, and granular raw materials.

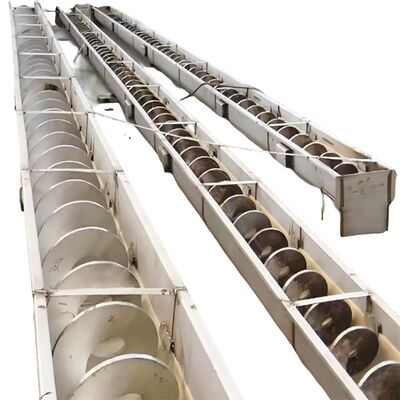

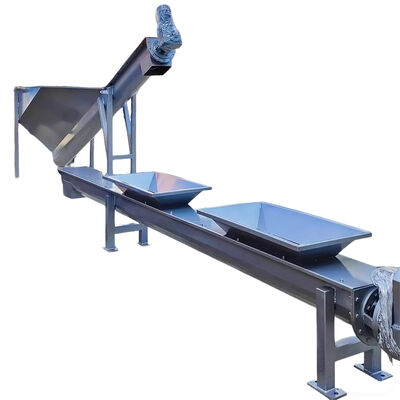

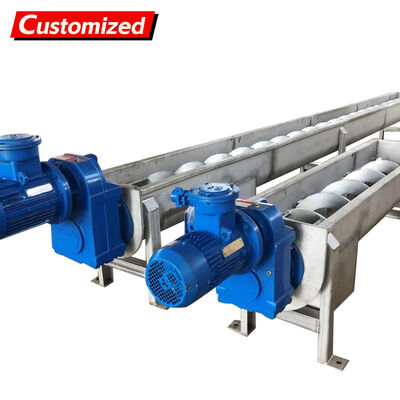

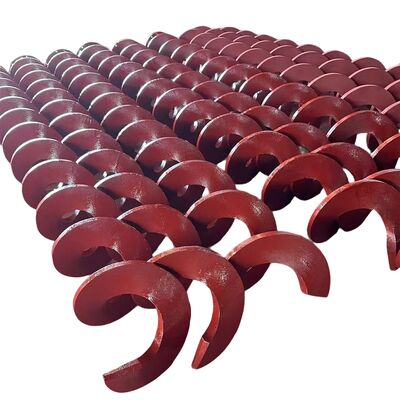

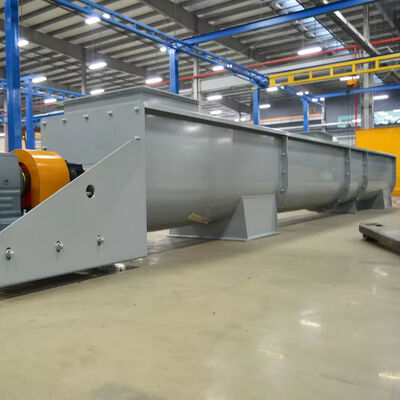

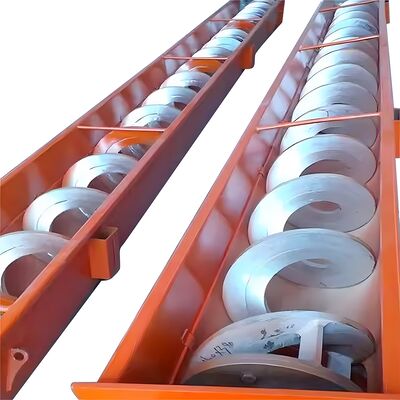

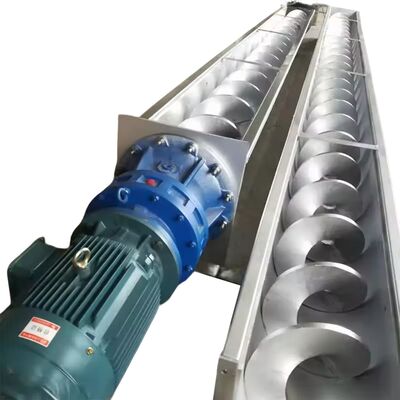

| Product Name | Shaftless Screw Conveyor |
| Material Options | Stainless steel, carbon steel, manganese steel |
| Primary Function | Transportation of viscous and easily tangled materials including sludge, household waste, and waste paper pulp |
| Customization | Supported |
| Voltage | 380 V |
| Automation Grade | Automatic |
| Machinery Capacity | 10 |
| Key Machines | Screw Conveyor |
| Weight | 56 KG |
| Dimensions (L*W*H) | 12*1.5*0.8 |
| Power | 2 |
| Screw Diameter | 100~1250mm |
| Pitch | 100~630mm |
| Rotation Speed | 13~140r/min |
| Capacity | 1.47~30025m³/h |
| Power Range | 1.1~73.3kW |
| Inclination Angle | ≤25° |
| Blade Thickness | 8~12mm |
| Casing Type | U-shaped slot |
| Sealing Level | IP55 |
| Material Suitability | Sticky, fibrous, and easily entangled materials |
The shaftless screw conveyor offers versatile applications across multiple industries:
Specifically engineered for wastewater treatment plants, the shaftless screw conveyor efficiently transports sticky or entangled materials like screen residues and dewatered sludge, typically paired with screens or dewatering machines.
The innovative shaftless design prevents clogging issues, while nylon liners provide superior wear and corrosion resistance, making it ideal for humid and corrosive environments.
