Customized spiral sand washing machine 70-300TPH river stone sand and gravel bucket wheel sand washing machine 30kW high-yield Chinese supplier factory

브랜드 이름:	WeSeW
모델 번호:	카이001
MOQ:	1개
가격:	US$20,000~US$80,000 per pc
지불 조건:	T/T, 서부 동맹
공급 능력:	달 당 10000pcs

상세 정보

제품 설명

상세 정보

원래 장소:

중국

인증:

CE,UL

재료:

스테인레스 스틸/커스텀

재료 기능:

내방성, 내화성

애플리케이션:

화학 산업, 곡물 운송, 광업 운송, 발전소

핵심 구성요소:

모터

차원 (L*W*H):

맞춤형

사양:

맞춤형

이름:

모래 나사지 세척기

포장 세부 사항:

나무 케이스

공급 능력:

달 당 10000pcs

강조하다:

customized spiral sand washing machine

river stone sand gravel washer

high-yield bucket wheel sand washer

제품 설명

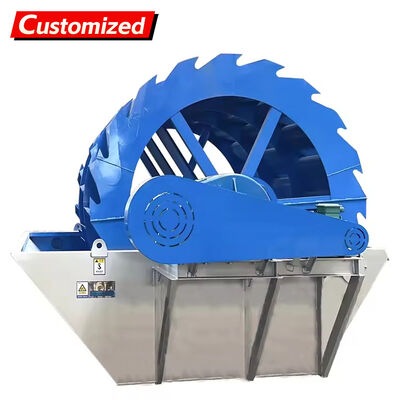

Customized Spiral Sand Washing Machine

Our 70-300TPH river stone sand and gravel bucket wheel sand washing machine is a 30kW high-yield solution designed for optimal performance in sand processing operations.

Product Overview

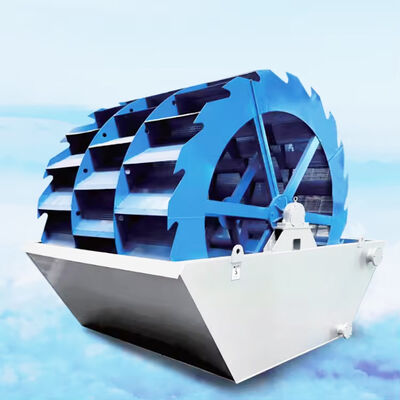

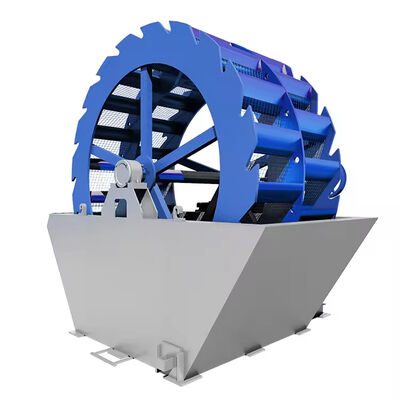

The bucket wheel sand washing machine incorporates industry experience and practical design to deliver superior washing, grading, and impurity removal for sand and gravel materials. This equipment significantly enhances finished sand quality and serves as the preferred solution for wet processing in artificial sand production.

Key Features & Benefits

Rational structure design with low power consumption, high throughput, superior cleanliness, effective dewatering, and minimized sand loss
Impeller drive bearing assembly isolated from water and processed materials for high-precision sand/water separation and reduced failure rates
Innovative sealed construction, oil-bath transmission mechanism, and adjustable weir plates ensure operational efficiency and durability

Technical Specifications

Motor Type	AC Motor
Capacity	70-300 t/h
Core Components	Engine
Weight	13,000 KG
Available Colors	White, Green, Blue, Black
Quality Assurance	Video outgoing-inspection and Machinery Test Report Provided
Dimensions (L×W×H)	10200×2675×2350 mm
Motor Power	30kW
Primary Application	Washing
Key Advantage	High Output
Maximum Feed Size	≤10mm

Spiral Washer Capabilities

Also known as sand washer or fine mineral washer, this highly efficient industrial washing equipment processes fine materials with particle sizes less than 10 mm. It excels in large-scale processing of sand and gravel materials containing soil, dust, or impurities.

Widely used across aggregate, highways, mining and recycling industries, the Spiral Washer offers simple structure, stable operation, and easy maintenance. It serves as an ideal solution for washing, classification and dewatering applications.

Configuration Options

Available in single spiral shaft and double spiral shaft configurations. The double spiral washer provides greater processing capacity and higher efficiency, making it particularly suitable for large-scale plant operations.
