제품 세부 정보

Created with Pixso. 집 Created with Pixso. 상품 Created with Pixso.
모래 나사지 세척기
Created with Pixso.

oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h

이름

oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h

브랜드 이름: WeSeW
모델 번호: 카이001
MOQ: 1개
가격: US$20,000~US$80,000 per pc
지불 조건: T/T, 서부 동맹
공급 능력: 달 당 10000pcs
상세 정보
제품 설명
상세 정보
원래 장소:
중국
인증:
CE,UL
재료:
스테인레스 스틸/커스텀
재료 기능:
내방성, 내화성
애플리케이션:
화학 산업, 곡물 운송, 광업 운송, 발전소
핵심 구성요소:
모터
차원 (L*W*H):
맞춤형
사양:
맞춤형
이름:
모래 나사지 세척기
포장 세부 사항:
나무 케이스
공급 능력:
달 당 10000pcs
강조하다:

spiral sand washing machine with gears

,

sand screw washer for river pebbles

,

granite sand washer 40-300t/h

제품 설명
Spiral Sand Washing Machine
High-quality OEM spiral sand washing equipment with gears and pumps, designed for processing river pebbles, limestone, and granite with a washing capacity of 40-300t/h.
Product Overview
Customized industrial mineral river silica sand spiral washing machine designed for construction, highway projects, hydropower plants, and sand and gravel operations with low investment requirements.
The Spiral Sand Washing and Recycling Machine integrates sand washing, fine sand recovery, and dehydration technologies. This advanced system features compact design, clean final products, minimal fine sand loss, high capacity, extended service life, and reduced maintenance costs.
Technical Specifications
Motor Type AC Motor
Capacity 40-300t/h
Core Components PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Weight 128000 KG
Warranty 1 Year
Video Inspection Provided
Machinery Test Report Provided
Dimensions (L×W×H) Customizable to requirements
Application Sand Washing
Usage Remove Dirty Soil
Raw Material Limestone, bluestone, river pebbles, granite, etc.
Quality High Level
Key Features
  • High cleaning efficiency: Effectively removes dirt, clay, and organic impurities from sand to improve quality
  • Large processing capacity: Handles from several tons to several hundred tons per hour depending on model
  • Low power consumption: Energy-efficient operation reduces operating costs
  • Minimal sand loss: Advanced design preserves fine sand and reduces material waste
  • Durable construction: Wear-resistant steel components ensure long service life with minimal maintenance
  • Eco-friendly operation: Incorporates water recycling systems and energy-efficient motors

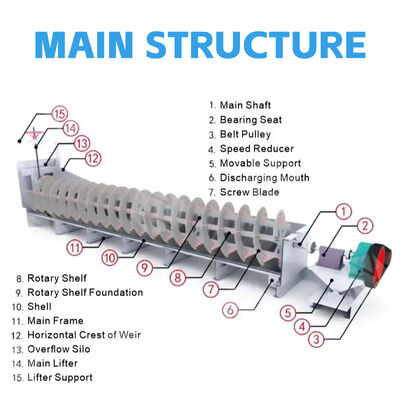

Working Principle
The Spiral Sand Washer operates through a synergistic process of agitation, settling and material transportation:
  1. Sand-cement slurry enters the inclined trough
  2. Rotating spiral blades agitate the mixture while gravity settles heavier sand particles
  3. Lighter impurities remain in suspension and are washed away
  4. The spiral conveyor lifts cleaned sand while discharging excess water
  5. Process delivers dewatered, purified material ready for downstream processing
Applications
  • Construction Aggregate Production: Purifies raw quarry material for concrete, asphalt or mortar
  • Mineral Processing: Washes crushed ore to separate waste rock in mining operations
  • Industrial Sand Processing: Produces high-purity sand for glass manufacturing and foundry applications
Environmental Protection
Our spiral sand washers incorporate comprehensive environmental safeguards including closed-loop water recycling systems with sedimentation tanks, dust suppression through sprinklers and enclosed conveyors, noise reduction technology, wastewater treatment with chemical flocculation and pH balancing, energy-efficient motors, and waste segregation programs.
Quality Assurance
Machinery Test Report Provided
Video Inspection Provided
After-sales Service Engineers available to service machinery overseas with full lifecycle support
Product Gallery
oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h 0 oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h 1 oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h 2 oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h 3 oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h 4 oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h 5 oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h 6 oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h 7
