제품 세부 정보

집 상품

Customized stainless steel tube chain conveyors are suitable for grain, fertilizer, and feed transportation in space-saving applications.

브랜드 이름:	WESEW
모델 번호:	W003
MOQ:	1개
가격:	US$75000~US$20,000/set
지불 조건:	T/T, 서부 동맹
공급 능력:	한 달에 100 세트

상세 정보

제품 설명

상세 정보

원래 장소:

중국

인증:

재료:

스테인레스 스틸

재료 기능:

내방성, 내화성

어플리케이션:

화학 산업, 곡물 운송, 광업 운송, 발전소

적용산업:

제조 공장, 에너지 및 광업

핵심 구성요소:

모터, 엔진

차원 (L*W*H):

맞춤형

사양:

맞춤형

구조:

체인 컨베이어

포장 세부 사항:

나무 케이스

공급 능력:

한 달에 100 세트

강조하다:

stainless steel tube chain conveyor

grain transport chain scraper conveyor

space-saving fertilizer tube conveyor

제품 설명

Customized Stainless Steel Tube Chain Conveyors

Our tube chain conveyor systems are ideal for grain, fertilizer, and feed transportation in space-constrained applications. These fully enclosed tubular chain conveyors provide efficient material handling with minimal energy consumption.

Tube Chain Conveyor System Features

Also known as plate chain conveyors, our systems operate within sealed pipes for dust-free operation. They offer stable performance and energy efficiency when conveying bulk materials including powders, fine particles, and small lumps. Capable of horizontal, inclined, and vertical transportation, these conveyors serve industries such as chemical processing, agriculture, mining, food production, and construction.

Technical Specifications

Motor Specifications
Motor Power	Kw	4-80
Power Voltage		380/220
Main Performance Parameters
Chain Wheel Speed	r/min	8-20
Chain Plate Speed	m/s	3
Conveying Quantity	CBM/h	4-80

Steel Wire Rope Conveyor Advantages

Compact structure with universal turning capability
No dead areas in material flow
Multiple discharge points without special airlocks
Adjustable plate spacing for versatile applications
Ideal for small capacity material conveying
More economical than plate chains with lower maintenance costs

Model Specifications

Model	Capacity (m³/h)	Chain Wheel Speed (r/min)	Chain Plate Speed (m/s)	Motor Power (kw)
GL80	4	20	0.29	4
GL100	8	18	0.31	5.5
GL150	16	15	0.31	7.5
GL200	28	12	0.3	11
GL250	48	10	0.3	15
GL300	60	8	0.28	18.5
GL400	80	8	0.28	22

Technology Advantages

Scientific Design: Includes anti-off chain device, chain-broken protection, color disc matching, chain reverse recognition, and emergency outlets for rapid production resumption
Perfect Service: Extensive manufacturing and installation experience with ample spare parts availability
Rich Experience: Proven performance across multiple industries handling diverse materials with capacities up to 300m³/h, vertical conveying up to 40m, and horizontal conveying up to 60m
Powerful Strength: Strong technical foundation with university research partnerships, two research centers, and over 30 engineers in our high-tech enterprise
Advanced Technology: Online status detection system with timely alarms and interlocks to prevent equipment accidents
Excellent Performance: High-temperature resistance up to 250°C (soft disc) and system operation capability at 500°C

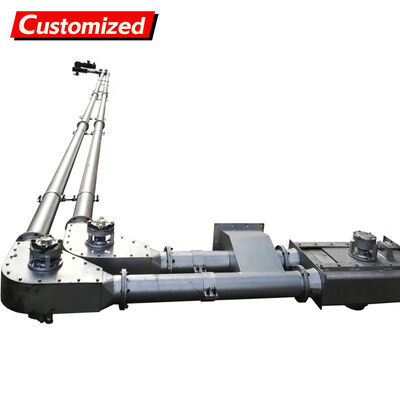

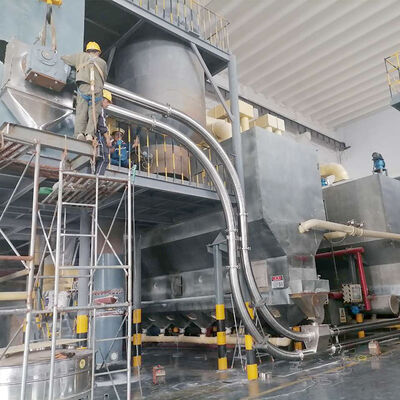

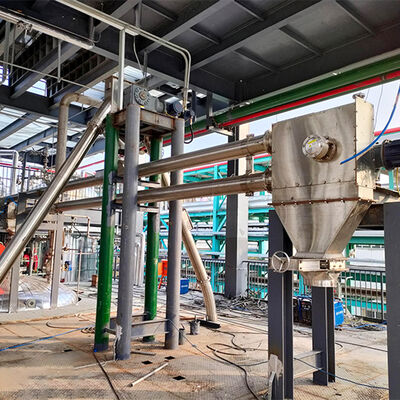

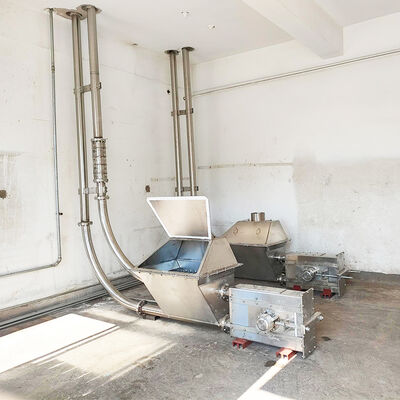

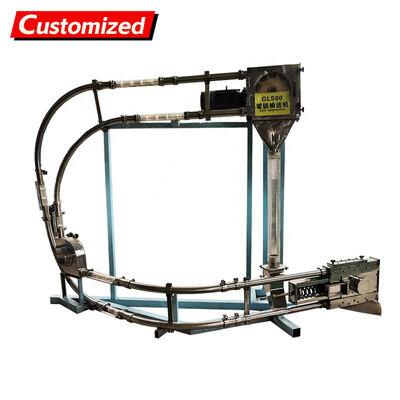

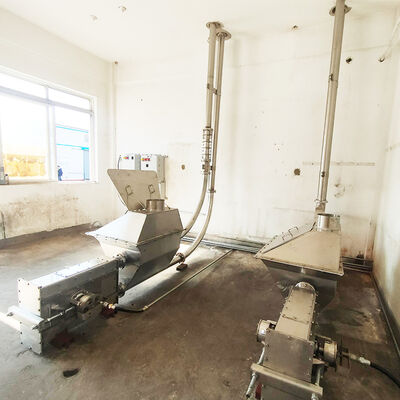

Product Images
